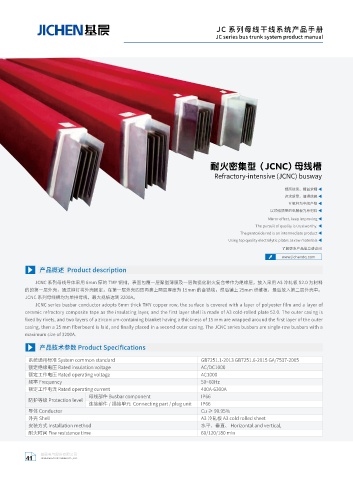

Page 42 - 基晨电气股份有限公司

JC 系列母线干线系统产品手册
JC series bus trunk system product manual

耐火密集型（JCNC) 母线槽

Refractory-intensive (JCNC) busway

镜面效果，精益求精 ◀
追求质量，值得信赖 ◀
五氧杆为中间产物 ◀
以顶级质量的电解板为原材料 ◀
Mirror effect, keep improving ◀
The pursuit of quality is trustworthy. ◀
The pentoxide rod is an intermediate product ◀
Using top quality electrolytic plates as raw materials ◀
了解更多产品信息请访问
www.jichendq.com
产品概述 Product description

JCNC 系列母线导体采用 6mm 厚的 TMY 铜排，表面包覆一层聚脂薄膜及一层陶瓷化耐火复合带作为绝缘层，放入采用 A3 冷轧板 S2.0 为材料
的的第一层外壳，通过铆钉将外壳固定，在第一层外壳四周再裹上两层厚度为 15mm 的含锆毯，然后铺上 25mm 纤维板，最后放入第二层外壳中。
JCNC 系列母线槽均为单排母线，最大规格达到 3200A。
JCNC series busbar conductor adopts 6mm thick TMY copper row, the surface is covered with a layer of polyester film and a layer of
ceramic refractory composite tape as the insulating layer, and the first layer shell is made of A3 cold-rolled plate 52.0. The outer casing is
fixed by rivets, and two layers of a zirconium-containing blanket having a thickness of 15 mm are wrapped around the first layer of the outer
casing, then a 25 mm fiberboard is laid, and finally placed in a second outer casing. The JCNC series busbars are single-row busbars with a
maximum size of 3200A.

产品技术参数 Product Specifications

系统通用标准 System common standard GB7251.1-2013 GB7251.6-2015 GA/7537-2005
额定绝缘电压 Rated insulation voltage AC/DC1000
额定工作电压 Rated operating voltage AC1000
频率 Frequency 50~60Hz
额定工作电流 Rated operating current 400A-6300A
母线部件 Busbar component IP66
防护等级 Protection level
连接部件 / 插接单元 Connecting part / plug unit IP66
导体 Conductor Cu ≥ 99.95%
外壳 Shell A3 冷轧板 A3 cold rolled sheet
安装方式 Installation method 水平、垂直、 Horizontal and vertical,
耐火时间 Fire resistance time 60/120/180 min
