JC 系列母线干线系统产品手册
JC series bus trunk system product manual
现场安装
On-site Installation

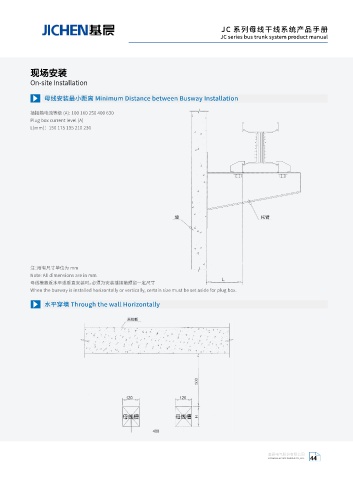

母线安装最小距离 Minimum Distance between Busway Installation
插接箱电流等级 (A): 100 160 250 400 630
Plug box current level (A)
L(mm)：150 175 195 210 230
注：所有尺寸单位为 mm
Note: All dimensions are in mm
母线槽靠近水平或垂直安装时，必须为安装插接箱预留一定尺寸
When the busway is installed horizontally or vertically, certain size must be set aside for plug box.
水平穿墙 Through the wall Horizontally
