JC 系列母线干线系统产品手册
JC series bus trunk system product manual

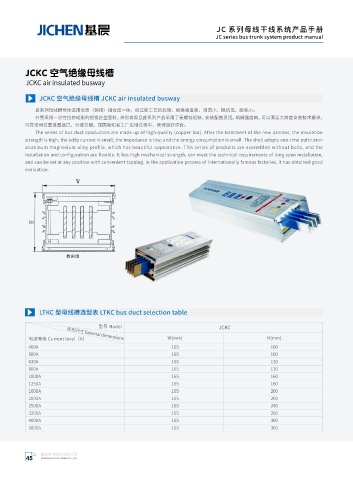

JCKC 空气绝缘母线槽

JCKC air insulated busway

JCKC 空气绝缘母线槽 JCKC air insulated busway

该系列母线槽导体选用优质（铜排）组合成一体，经过新工艺的处理，绝缘强度高、涡流小、阻抗低、能耗小。
外壳采用一次性拉挤成形的铝镁合金型材，外形美观且此系列产品采用了无螺栓组装，安装配置灵活。机械强度高，可以满足大跨度安装技术要求，
可在任何位置设置插口，分接方便。在国际知名工厂应用过程中，获得良好评价。
The series of bus duct conductors are made up of high-quality (copper bar). After the treatment of the new process, the insulation
strength is high, the eddy current is small, the impedance is low, and the energy consumption is small. The shell adopts one-time pultrusion
aluminum magnesium alloy profile, which has beautiful appearance. This series of products are assembled without bolts, and the
installation and configuration are flexible. It has high mechanical strength, can meet the technical requirements of long-span installation,
and can be set at any position with convenient tapping. In the application process of internationally famous factories, it has obtained good
evaluation.

LTKC 型母线槽选型表 LTKC bus duct selection table

型号 Model JCKC

外形尺寸 External dimensions
电流等级 Current level（A） W(mm) H(mm)
400A 165 100
500A 165 100
630A 165 130
800A 165 130
1000A 165 160
1250A 165 160
1600A 165 200
2000A 165 200
2500A 165 240
3200A 165 280
4000A 165 360
5000A 165 360
