JC 系列母线干线系统产品手册
JC series bus trunk system product manual
现场安装
On-site Installation

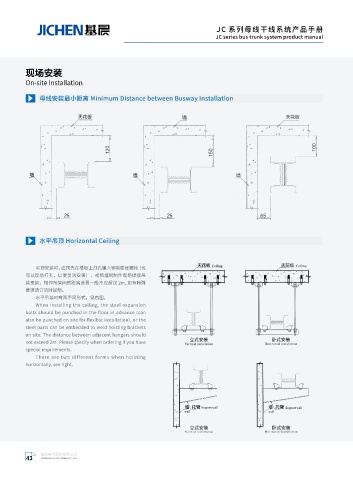

母线安装最小距离 Minimum Distance between Busway Installation
水平吊顶 Horizontal Ceiling
吊顶安装时，应预先在楼板上打孔镶入钢制膨胀螺栓（也
可以现场打孔，以便灵活安装），或预埋钢制件现场焊接吊
装支架，相邻吊架间的距离设置一般不应超过 2m, 如有特殊
要求请订货时说明。
水平吊装时有两不同形式，见右图。
When installing the ceiling, the steel expansion
bolts should be punched in the floor in advance (can
also be punched on site for flexible installation), or the
steel parts can be embedded to weld hoisting brackets
on site. The distance between adjacent hangers should
not exceed 2m. Please specify when ordering if you have
special requirements.
There are two different forms when hoisting
horizontally, see right.
