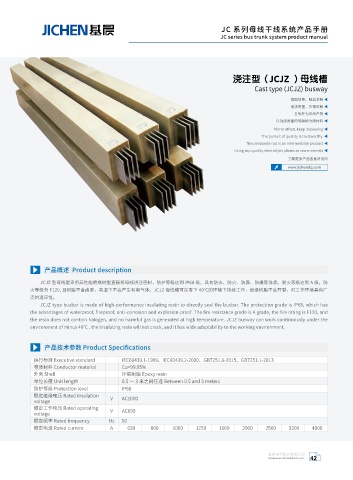

Page 43 - 基晨电气股份有限公司

JC 系列母线干线系统产品手册
JC series bus trunk system product manual

浇注型（JCJZ ) 母线槽
Cast type (JCJZ) busway

镜面效果，精益求精 ◀
追求质量，值得信赖 ◀
五氧杆为中间产物 ◀
以顶级质量的电解板为原材料 ◀
Mirror effect, keep improving ◀
The pursuit of quality is trustworthy. ◀
The pentoxide rod is an intermediate product ◀
Using top quality electrolytic plates as raw materials ◀
了解更多产品信息请访问
www.jichendq.com

产品概述 Product description

JCJZ 型母线是采用高性能绝缘树脂直接将母线浇注密封，防护等级达到 IP68 级，具有防水、防火、防腐、防爆等优点。耐火等级达到 A 级，防
火等级为 F120, 且树脂不含卤素，高温下不会产生有害气体。JCJZ 母线槽可在零下 40℃的环境下持续工作，绝缘树脂不会开裂，对工作环境具有广
泛的适应性。
JCJZ type busbar is made of high-performance insulating resin to directly seal the busbar. The protection grade is IP68, which has
the advantages of waterproof, fireproof, anti-corrosion and explosion-proof. The fire resistance grade is A grade, the fire rating is F120, and
the resin does not contain halogen, and no harmful gas is generated at high temperature. JCJZ busway can work continuously under the
environment of minus 40℃ , the insulating resin will not crack, and it has wide adaptability to the working environment.

产品技术参数 Product Specifications

执行标准 Executive standard IEC60439.1-1999、IEC60439.2-2000、GB7251.6-2015、GB7251.1-2013
导体材料 Conductor material Cu>99.95%
外壳 Shell 环氧树脂 Epoxy resin
单位长度 Unit length 0.5 〜 3 米之间任选 Between 0.5 and 3 meters
防护等级 Protection level IP68
额定绝缘电压 Rated insulation
V AC1000
voltage
额定工作电压 Rated operating
voltage V AC690
额定频率 Rated frequency Hz 50
额定电流 Rated current A 630 800 1000 1250 1600 2000 2500 3200 4000
