JC 系列母线干线系统产品手册
JC series bus trunk system product manual

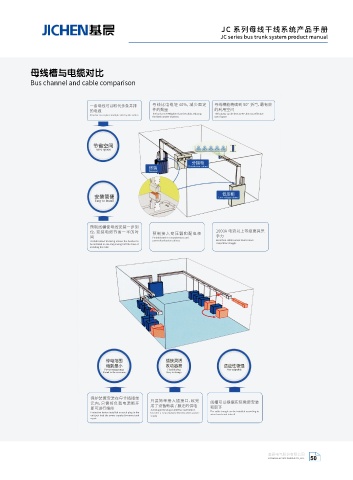

母线槽与电缆对比
Bus channel and cable comparison
一条母线可以取代多条并排 母线比电缆轻 40%，减少固定 母线槽能精确到 90° 折弯，最有效
的电缆 件的数量 的利用空间
The busbar is 40%lighter than the cable, reducing The busway can be bent to 90° ,the most effective
A busbar can replace multiple side by side cables
the fixed number of pieces use of space
预制线槽使母线安装一步到
位，变装电缆节省一半的时 预 制 接 入 变 压 器 和 配 电 柜 1600A 电流以上等级更具竞
间 Prefabricated cess transformers and 争力
Prefabricated trunking allows the busbar to power distribution cabincts More than 1600A current level is more
competitivc struggle
be installed in one step,saving half the time of
installing the cable
保护装置安装在每个插接单
只要简单接入插接口，就完
元内，只需将负载电源断开 线槽可以根据实际需要安装
成了设备新装 / 搬迁的供电
即可进行维修 Just plug in the plug-in interface and finish it. 和取下
Protective device installed on each plug in the become a new equipmcnt/rclocation power The cable trough can be installed according to
unit,just load the power supply disconnect and supply actual needs and take off
repair
