JC 系列母线干线系统产品手册
JC series bus trunk system product manual

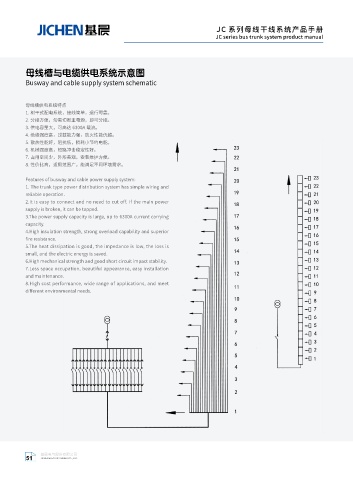

母线槽与电缆供电系统示意图

Busway and cable supply system schematic

母线槽供电系统特点
1. 树干式配电系统，接线简单，运行可靠。
2. 分接方便，勿需切断主电源，即可分接。
3. 供电容量大，可高达 6300A 载流。
4. 绝缘强度高，过载能力强，防火性能优越。
5. 散热性能好，阻抗低，损耗小节约电能。
6. 机械强度高，短路冲击稳定性好。
7. 占用空间少，外形美观，安装维护方便。
8. 性价比高，适用范围广，能满足不同环境需求。

Features of busway and cable power supply system:
1. The trunk type power distribution system has simple wiring and
reliable operation.
2.It is easy to connect and no need to cut off. If the main power
supply is broken, it can be tapped.
3.The power supply capacity is large, up to 6300A current carrying
capacity.
4.High insulation strength, strong overload capability and superior
fire resistance.
5.The heat dissipation is good, the impedance is low, the loss is
small, and the electric energy is saved.
6.High mechanical strength and good short circuit impact stability.
7.Less space occupation, beautiful appearance, easy installation
and maintenance.
8.High cost performance, wide range of applications, and meet
different environmental needs.
