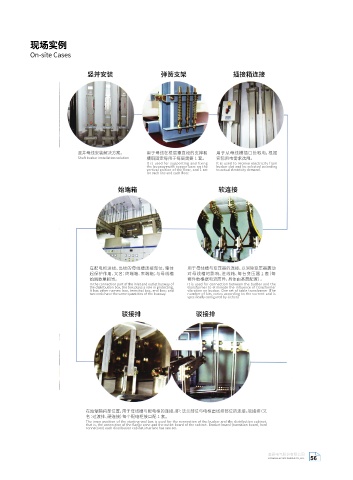

现场实例
On-site Cases
竖并安装 弹簧支架 插接箱连接
竖井母线安装解决方案。 用于母线在楼层垂直段的支撑和 用于从母线槽插口处取电，根据
Shaft busbar installation solution 槽铜固定每用于每层需要 1 套。 实际用电需求选用。
It is used for supporting and fixing It is used to receive electricity from
the buswayswith copper bars on the busbar slot and be selected according
vertical section of the floor, and 1 set to actual electricity demand.
for each line and each floor.
始端箱 软连接
在配电柜进线、出线的母线槽连接部位，箱体 用于母线槽与变压器的连接，以消除变压器震动
起保护作用，又名：终端箱、末端箱；与母线槽 对母线槽的影响。进线箱、每台变压器 1 套（每
始端数量相当。 套件数根据电流而异，具体由基晨配置）。
In the connection part of the inlet and outlet busway of It is used for connection between the busbar and the
the distribution box, the box plays a role in protecting. transformer to eliminate the influence of transformer
It has other names: box, terminal box, end box; and vibration on busbar. One set of table transformer (The
two ends have the same quantities of the busway. number of kits varies according to the current and is
specifically configured by Jichen)
驳接排 驳接排
在始端箱内部位置，用于母线槽与配电柜的连接，即：法兰部位与电柜出线排部位的连接。驳接排（又
名：过渡排、硬连接）每个配电柜接口配 1 套。
The inner position of the starting-end box is used for the connection of the busbar and the distribution cabinet,
that is, the connection of the flange zone and the outlet board of the cabinet. Bracket board (transition board, hard
connection) each distribution cabinet interface has one set.
