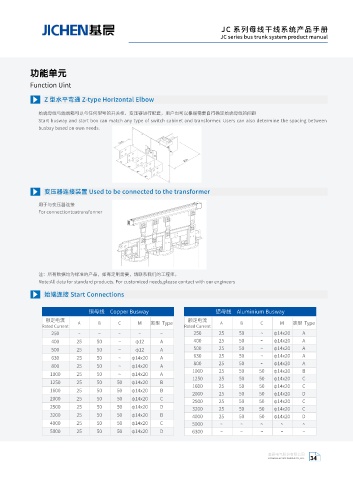

JC 系列母线干线系统产品手册
JC series bus trunk system product manual

功能单元

Function Uint

Z 型水平弯通 Z-type Horizontal Elbow

始端母线与始端箱可以与任何型号的开关柜、变压器进行配套，用户也可以根据需要自行确定始端母线的间距
Start busway and start box can match any type of switch cabinet and transformer. Users can also determine the spacing between
busbay based on own needs.

变压器连接装置 Used to be connected to the transformer

用于与变压器连接
For connectiontoatransfonner

注：所有数据均为标准的产品，如有定制需要，请联系我们的工程师。
Note:All data for standard products. For customized needs,please contact with our engineers

始端连接 Start Connections

铜母线 Copper Busway 铝母线 Aluminium Busway
额定电流 额定电流
A B C M 类型 Type A B C M 类型 Type
Rated Current Rated Current
250 ~ ~ ~ ~ ~ 250 25 50 ~ φ14x20 A
400 25 50 ~ φ12 A 400 25 50 ~ φ14x20 A
500 25 50 ~ φ12 A 500 25 50 ~ φ14x20 A
630 25 50 ~ φ14x20 A
630 25 50 ~ φ14x20 A
800 25 50 ~ φ14x20 A
800 25 50 ~ φ14x20 A
1000 25 50 50 φ14x20 B
1000 25 50 ~ φ14x20 A
1250 25 50 50 φ14x20 C
1250 25 50 50 φ14x20 B
1600 25 50 50 φ14x20 C
1600 25 50 50 φ14x20 B
2000 25 50 50 φ14x20 D
2000 25 50 50 φ14x20 C
2500 25 50 50 φ14x20 C
2500 25 50 50 φ14x20 D
3200 25 50 50 φ14x20 C
3200 25 50 50 φ14x20 B
4000 25 50 50 φ14x20 D
4000 25 50 50 φ14x20 C 5000 ~ ~ ~ ~ ~
5000 25 50 50 φ14x20 D 6300 ~ ~ ~ ~ ~
