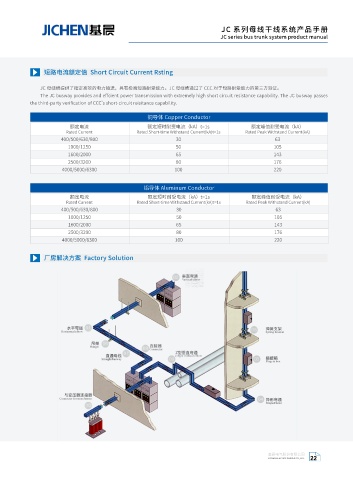

JC 系列母线干线系统产品手册
JC series bus trunk system product manual

短路电流额定值 Short Circuit Current Rsting

JC 母线槽提供了稳定高效的电力输送，具有极高短路耐受能力。JC 母线槽通过了 CCC 对于短路耐受能力的第三方验证。
The JC busway provides and effcient power transmission with extremely high short circuit resistance capability. The JC busway passes
the third-party verification of CCC's short-circuit reisitance capability.

铜导体 Copper Conductor
额定电流 额定短时耐受电流（kA）t=1s 额定峰值耐受电流（kA）
Rated Current Rated Short-time Withstand Current(kA)t=1s Rated Peak Withstand Current(kA)
400/500/630/800 30 63
1000/1250 50 105
1600/2000 65 143
2500/3200 80 176
4000/5000/6300 100 220

铝导体 Aluminum Conductor
额定电流 额定短时耐受电流（kA）t=1s 额定峰值耐受电流（kA）
Rated Current Rated Short-time Withstand Current(kA)t=1s Rated Peak Withstand Current(kA)
400/500/630/800 30 63
1000/1250 50 105
1600/2000 65 143
2500/3200 80 176
4000/5000/6300 100 220

厂房解决方案 Factory Solution
