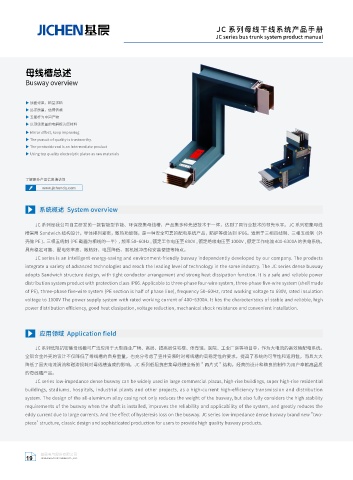

JC 系列母线干线系统产品手册
JC series bus trunk system product manual

母线槽总述

Busway overview

▶ 镜面效果，精益求精
▶ 追求质量，值得信赖
▶ 五氧杆为中间产物
▶ 以顶级质量的电解板为原材料
▶ Mirror effect, keep improving
▶ The pursuit of quality is trustworthy.
▶ The pentoxide rod is an intermediate product
▶ Using top quality electrolytic plates as raw materials

了解更多产品信息请访问
www.jichendq.com

系统概述 System overview

JC 系列是我公司自主研发的一款智能型节能、环保密集母线槽，产品集多种先进技术于一体，达到了同行业技术的领先水平。JC 系列密集母线
槽采用 Sandwich 结构设计，导体排列紧密，散热功能强，是一种安全可靠的配电系统产品，防护等级达到 IP66。适用于三相四线制、三相五线制（外
壳做 PE )、三相五线制（PE 截面为相线的一半），频率 50~60Hz , 额定工作电压至 690V , 额定绝缘电压至 1000V , 额定工作电流 400-6300A 的供电系统。
具有稳定可靠、配电效率高、散热好、电压降低、耐机械冲击和安装便捷等特点。
JC series is an intelligent energy-saving and environment-friendly busway independently developed by our company. The products
integrate a variety of advanced technologies and reach the leading level of technology in the same industry. The JC series dense busway
adopts Sandwich structure design, with tight conductor arrangement and strong heat dissipation function. It is a safe and reliable power
distribution system product with protection class IP66. Applicable to three-phase four-wire system, three-phase five-wire system (shell made
of PE), three-phase five-wire system (PE section is half of phase line), frequency 50~60Hz, rated working voltage to 690V, rated insulation
voltage to 1000V The power supply system with rated working current of 400~6300A. It has the characteristics of stable and reliable, high
power distribution efficiency, good heat dissipation, voltage reduction, mechanical shock resistance and convenient installation.

应用领域 Application field

JC 系列低阻抗密集母线槽可广泛应用于大型商业广场、高层、超高层住宅楼、体育馆、医院、工业厂房等项目中，作为大电流的高效输配电系统。
全铝合金外壳的设计不仅降低了母线槽的自身重量，也充分考虑了竖井安装时对母线槽的高稳定性的要求，提高了系统的可靠性和适用性，而且大大
降低了因大电流涡流和磁滞损耗对母线槽造成的影响。JC 系列低阻抗密集母线槽全新的 " 两片式 " 结构，经典的设计和精良的制作为用户奉献高品质
的母线槽产品。
JC series low-impedance dense busway can be widely used in large commercial plazas, high-rise buildings, super high-rise residential
buildings, stadiums, hospitals, industrial plants and other projects, as a high-current high-efficiency transmission and distribution
system. The design of the all-aluminum alloy casing not only reduces the weight of the busway, but also fully considers the high stability
requirements of the busway when the shaft is installed, improves the reliability and applicability of the system, and greatly reduces the
eddy current due to large currents. And the effect of hysteresis loss on the busway. JC series low-impedance dense busway brand new "two-
piece" structure, classic design and sophisticated production for users to provide high quality busway products.
